REVIEW – Portable power stations have moved from niche camping gear to realistic backup power for homes, RVs, jobsites, and off grid weekends. The Bluetti AC200MAX sits at the serious end of that category with a 2,048Wh LiFePO4 battery, a 2200W pure sine wave inverter, lots of output options, and the ability to grow far beyond its built in capacity. I tested it with Bluetti’s PV350 350W Solar Panel, and the combination impressed me for power, thoughtful design, reliability, and flexibility. It is not an inexpensive setup at $1499 for the AC200MAX and $799 for the PV350, but after using them together, I think the performance and expandability justify the price.
What this Bluetti kit includes
The core of the system is the AC200MAX power station. It uses Lithium Iron Phosphate battery chemistry, is rated at 2,048 watt hours, and can deliver up to 2200W continuously. Bluetti gives it 16 total outlets, multiple charging methods, pass through charging, and solar input up to 900W. The PV350 panel is a folding 350W monocrystalline panel with standard MC4 connectors and a claimed efficiency up to 23.4%.

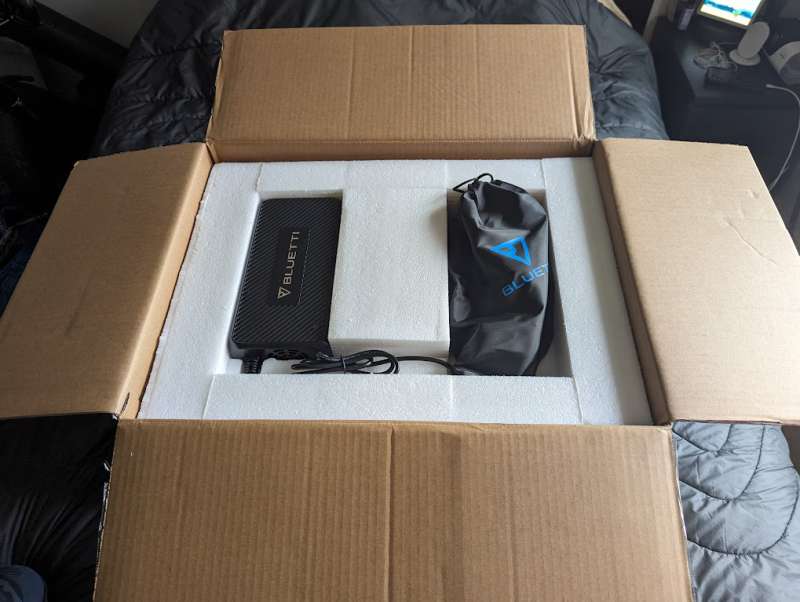

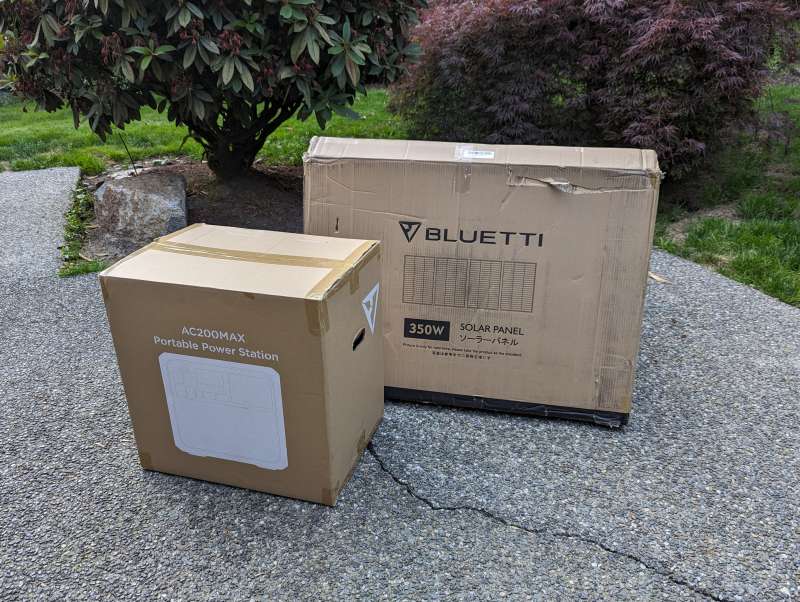

Both products arrived in sturdy packaging with simple line art on the boxes. Thick foam inside protected the heavy power station and the more delicate solar panel during shipping.

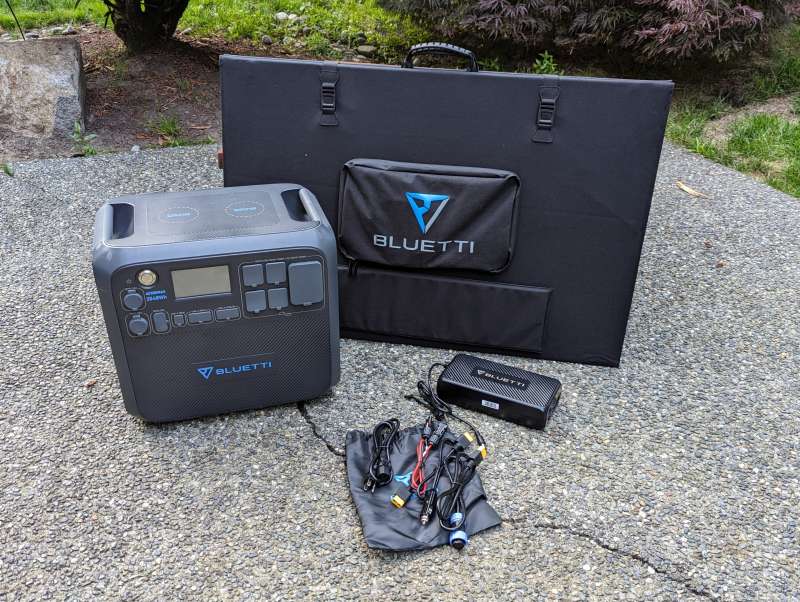

Inside the AC200MAX box are the power station, the T500 500W AC adapter, an XT90 to MC4 photovoltaic charging cable, an XT90 to cigarette lighter car charging cable, an XT90 to aviation pin connector cable, a cable storage bag, and the user manual. The PV350 package includes the solar panel and its user manual.
Key specifications
The AC200MAX has a 2,048Wh capacity, listed as 51.2V and 40Ah, and uses LiFePO4 cells rated for 3,500 plus cycles to 80% original capacity. Bluetti recommends recharging it to 80% every 3 to 6 months during storage. The station uses an MPPT controller, supports pass through charging, weighs 61.9 pounds, and measures 16.5 x 11 x 15.2 inches. It operates from -4 to 104°F and stores from 14 to 113°F.
For output, the AC200MAX includes four 120V/20A AC outlets, one 120V/30A NEMA TT-30 outlet, a 2200W pure sine wave inverter with 4800W surge power, one 100W USB-C port, two 5V/3A USB-A ports, two 18W USB-A ports, one 12V/30A RV outlet, one 12V/10A car outlet, two 12V/10A DC 5521 outlets, and two 15W wireless charging pads.
For input, it supports a 500W AC adapter, solar input up to 900W with 10 to 145VDC VOC and 15A, 12V or 24V car charging from a cigarette lighter port, and a combined AC plus solar input up to 1,400W. Bluetti lists recharge times of about 5.5 to 6 hours on one 500W AC adapter, about 3 to 3.5 hours from 900W solar in prime sun with ideal orientation and low temperature, about 10 or 20 hours from 12V or 24V car charging at 100W or 200W, about 2 to 2.5 hours with AC plus solar at 1400W, and about 3 to 3.5 hours with dual AC adapters at 1000W.
The PV350 is a 350W ETFE laminated monocrystalline silicon panel. Bluetti lists cell efficiency up to 23.4%, Vmp of 37.5V, Imp of 9.2A, open circuit voltage of 46.5V, short circuit current of 10.8A, standard MC4 connectors, a 30.6 pound weight, unfolded dimensions of 35.6 x 94.4 inches, folded dimensions of 35.6 x 24.1 x 2.5 inches, an operating temperature range of 14 to 149°F, a best working temperature of 77°F, and a 118 inch cable.
Design and build quality
I have reviewed other portable power stations, including the Goal Zero Yeti 1000 Core in September 2021 and the Geneverse Solar Generator in September 2022. The AC200MAX is neither as stripped down as the Goal Zero nor as sleek as the Geneverse, but it may be the most practical design of the group. Every control, cover, handle, and port feels placed for real use rather than showroom looks.

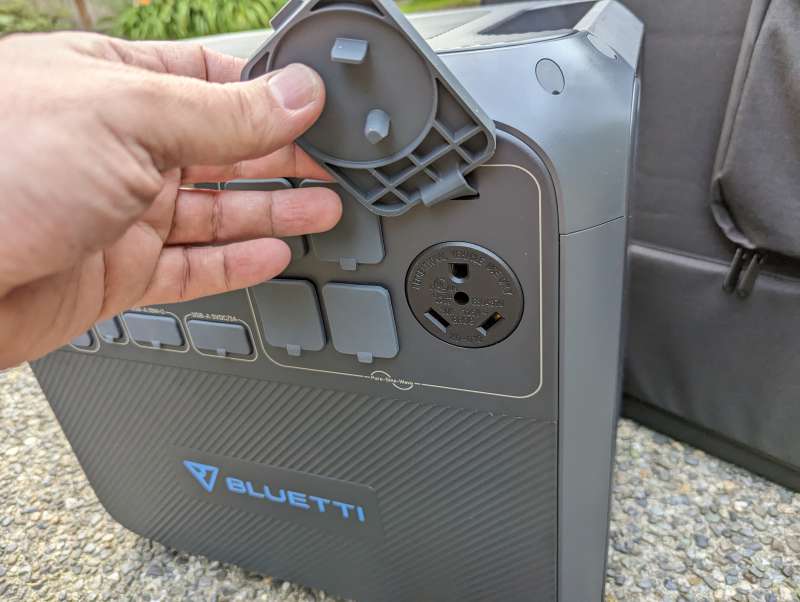

The rubber port covers fit securely, the handles are molded into the body, and the layout is easy to understand once you spend a few minutes with it. The biggest downside is weight. At about 62 pounds, the AC200MAX is portable in the sense that it can be moved, but it is close to the upper limit of what I want to carry very far.
That weight does help the power station feel rugged. The case is mostly plastic, but it does not feel flimsy, and the clicky metal power button gives the unit a more durable, appliance like feel.

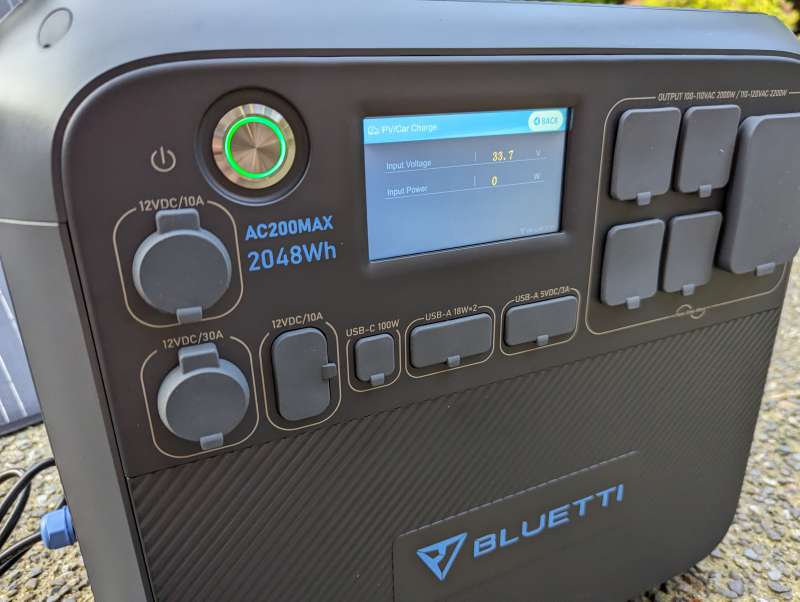

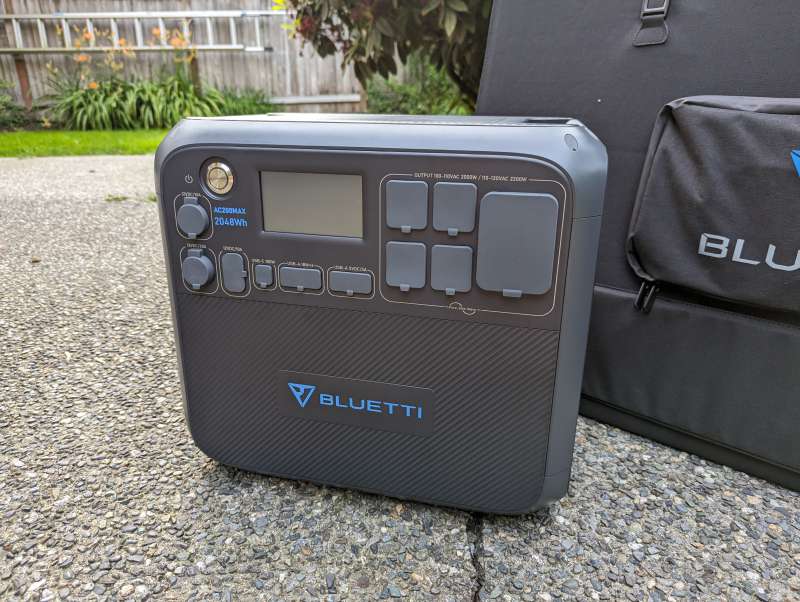

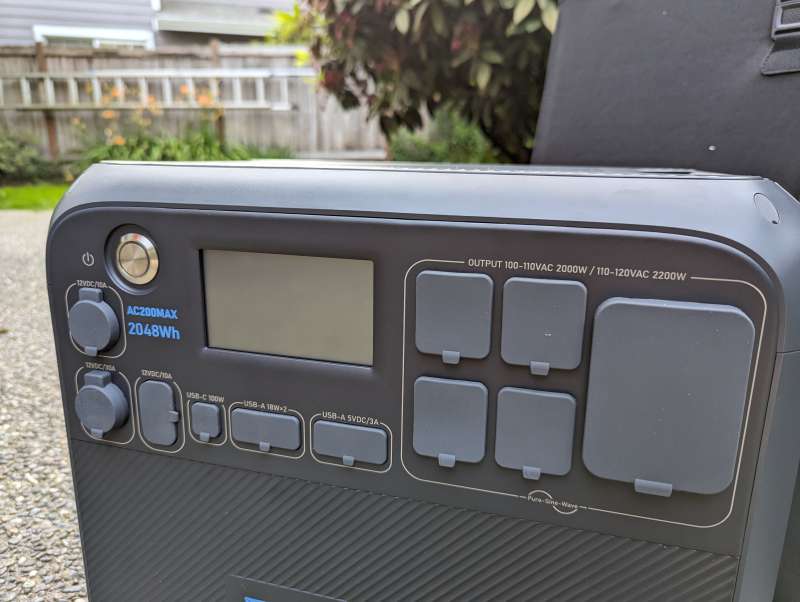

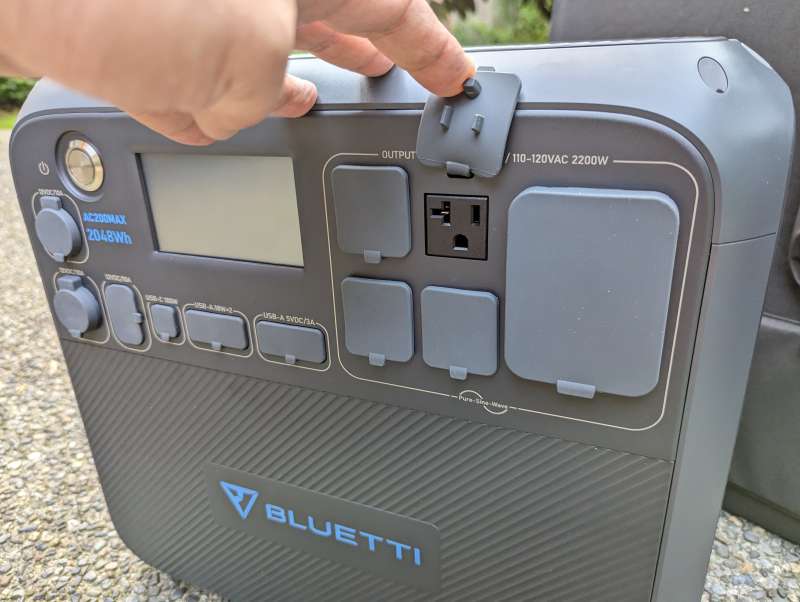

The front face holds 14 of the output ports, including the 30 amp, 125 volt female NEMA TT-30 outlet that RV owners will immediately recognize.

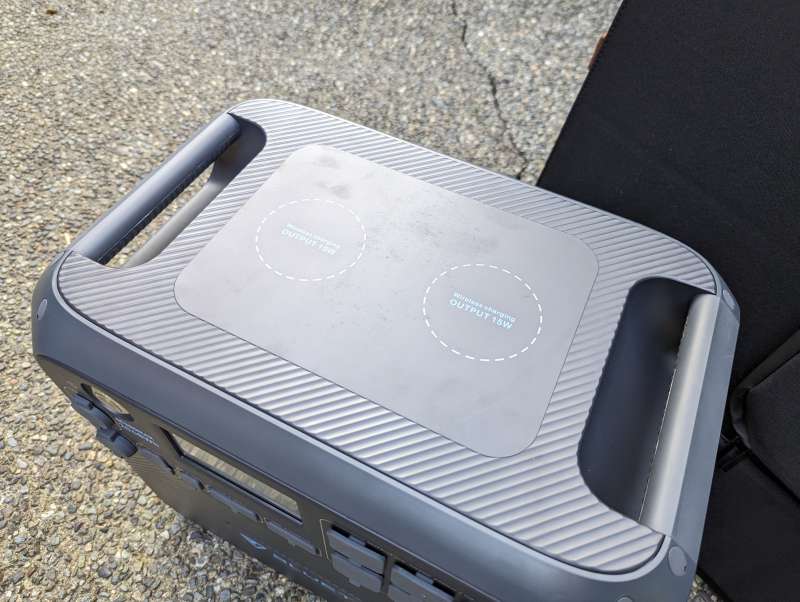

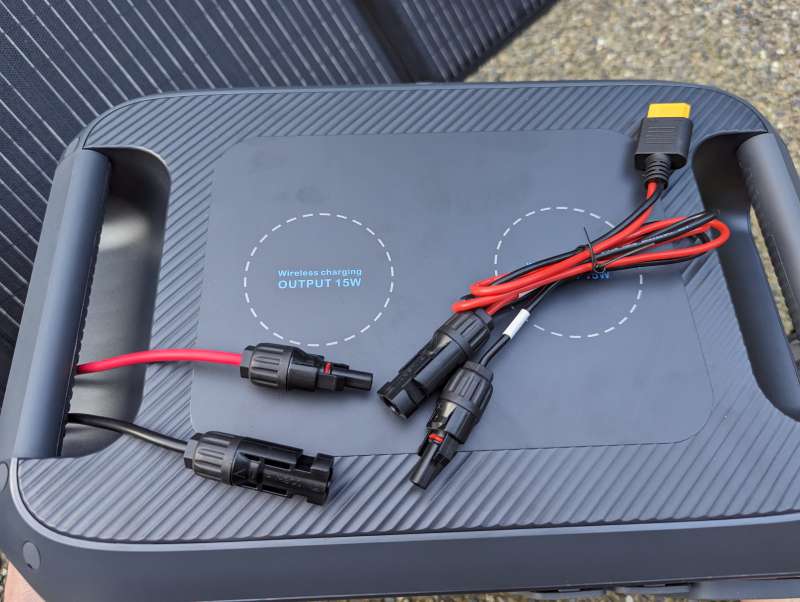

The top surface has two 15W wireless charging pads. I have not seen that feature on many power stations, and it is convenient for phones and smaller accessories.

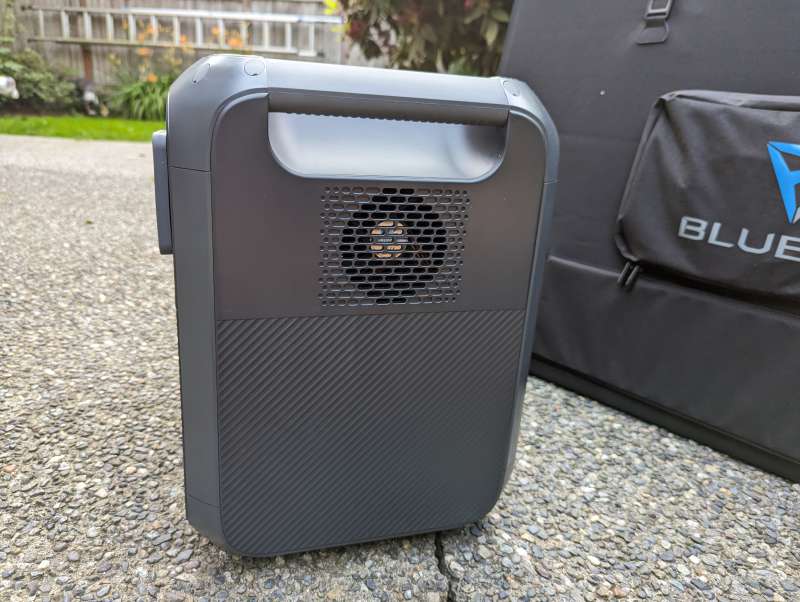

Cooling fans and vents sit on both sides of the AC200MAX, which makes sense for a unit designed to handle heavy charging and discharging loads.

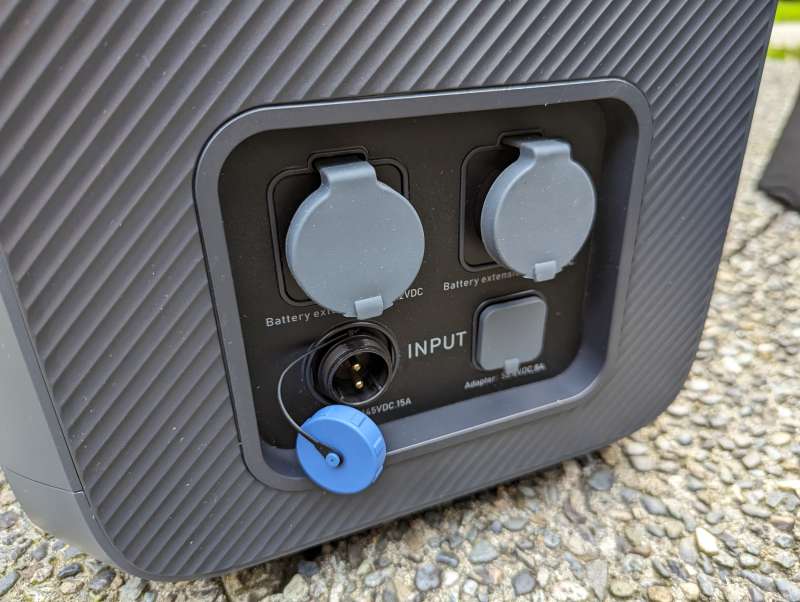

The input ports are on the lower left side, while the battery expansion ports sit above them. Those expansion ports are a major part of the AC200MAX appeal. You can attach up to two Bluetti B230 batteries at 2048Wh each or two B300 batteries at 3072Wh each, taking the system from 2,048Wh up to 8192Wh.

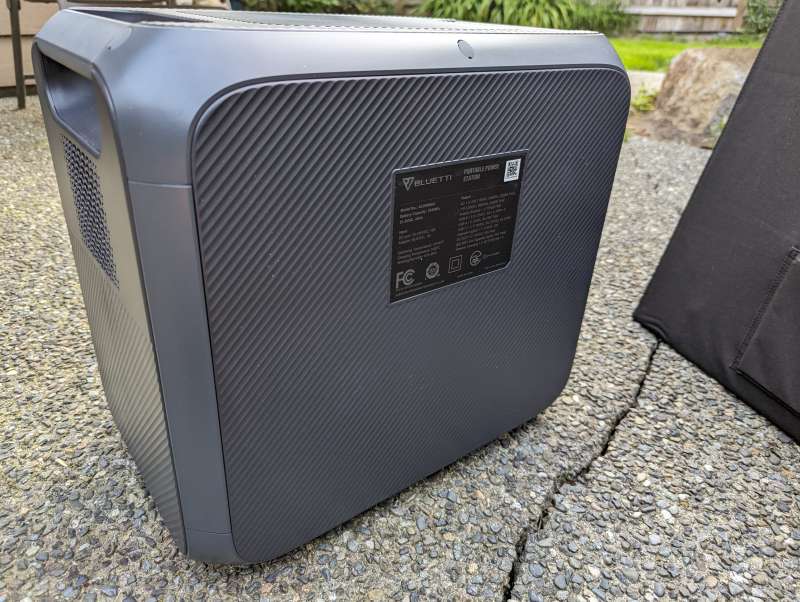

The back is simple, with a textured plastic panel and a specification plate that keeps the important electrical details on the unit.

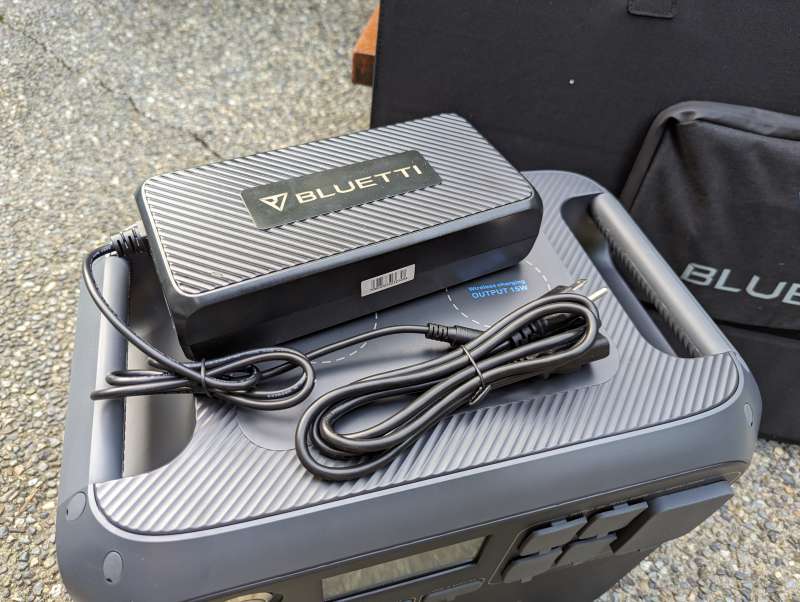

The included T500 500W AC adapter is substantial, with fans on both sides. In my use it charged the AC200MAX in about 4.5 hours. If you buy a second T500 adapter, Bluetti says dual adapter charging can reduce that time to about 2.5 hours.

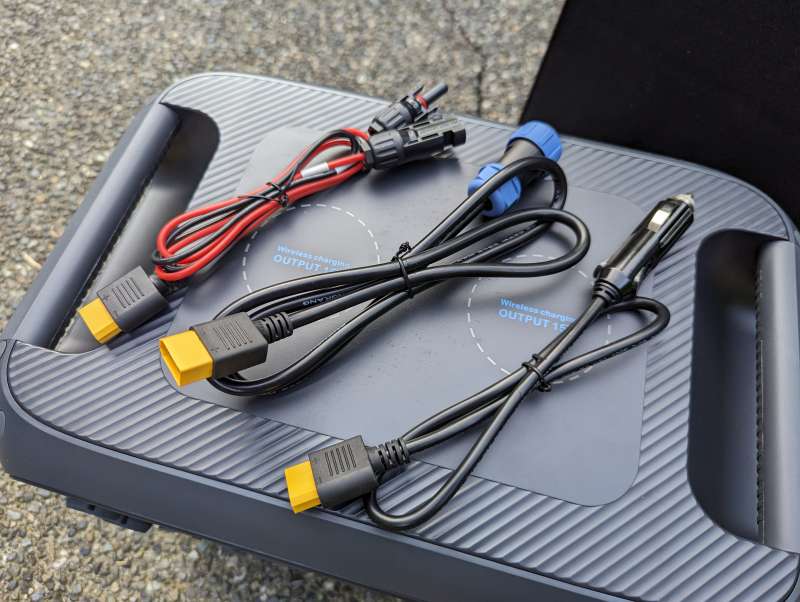

The included cables cover the main charging scenarios. There is an XT90 to MC4 cable for solar panels, an XT90 to aviation plug cable for the AC200MAX connection, and an XT90 to cigarette lighter cable for 12V DC charging.

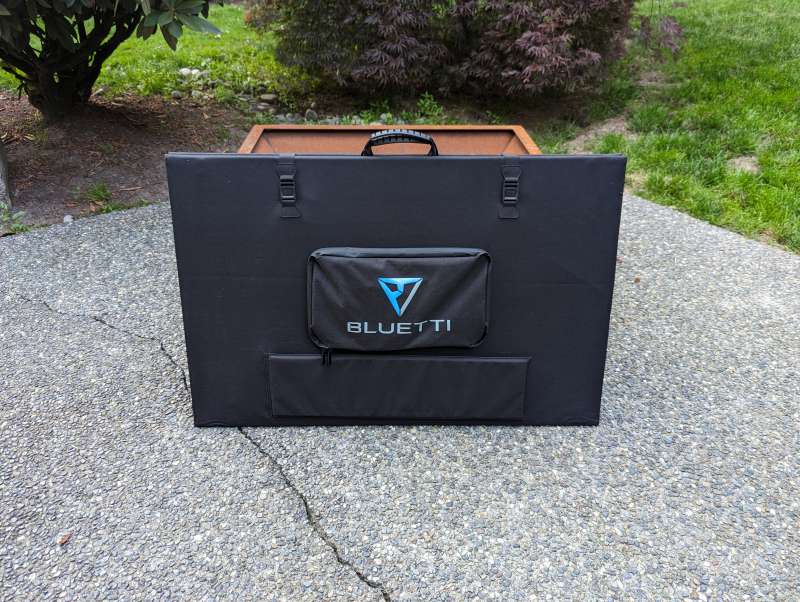

The PV350 folds into its own case, complete with a handle, so it is easier to move and store than a rigid panel of the same output would be.

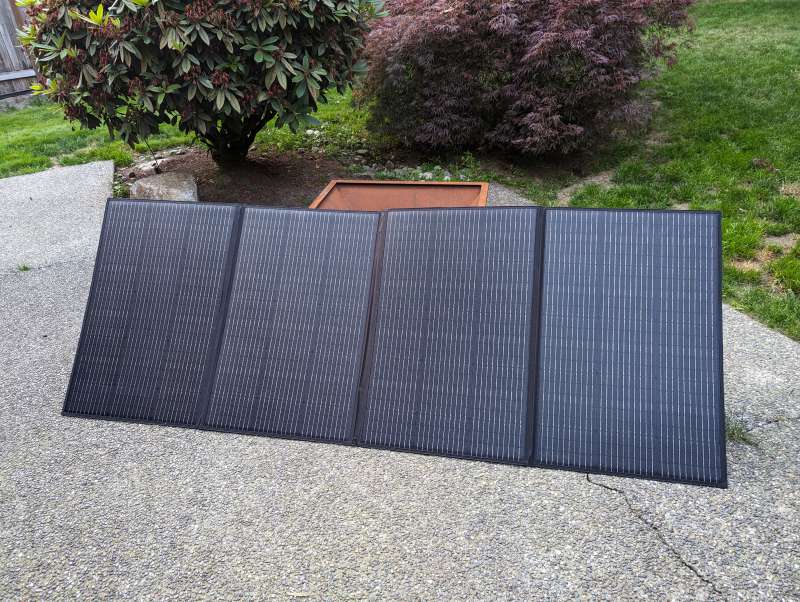

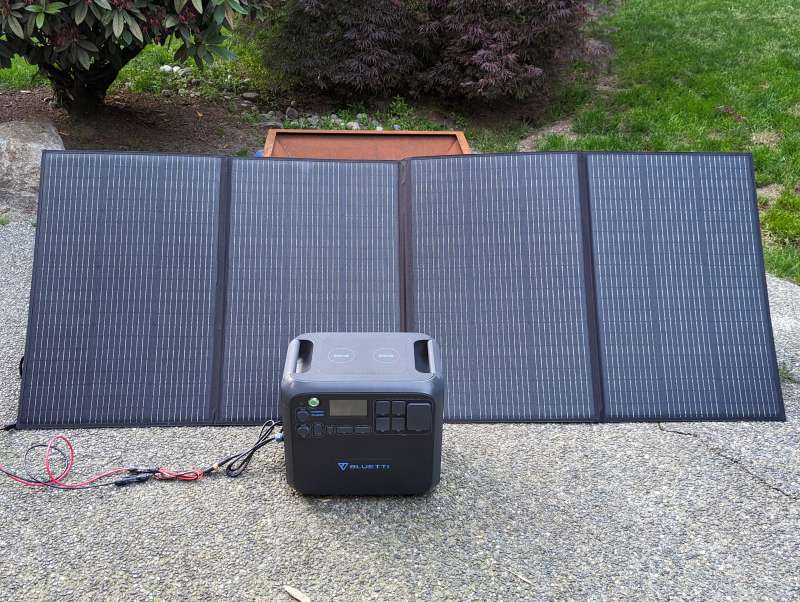

Unfolded, the PV350 is a four panel array. Folded, it measures about 35 by 24 inches, and at just over 30 pounds it is manageable to carry even though it is not exactly light.

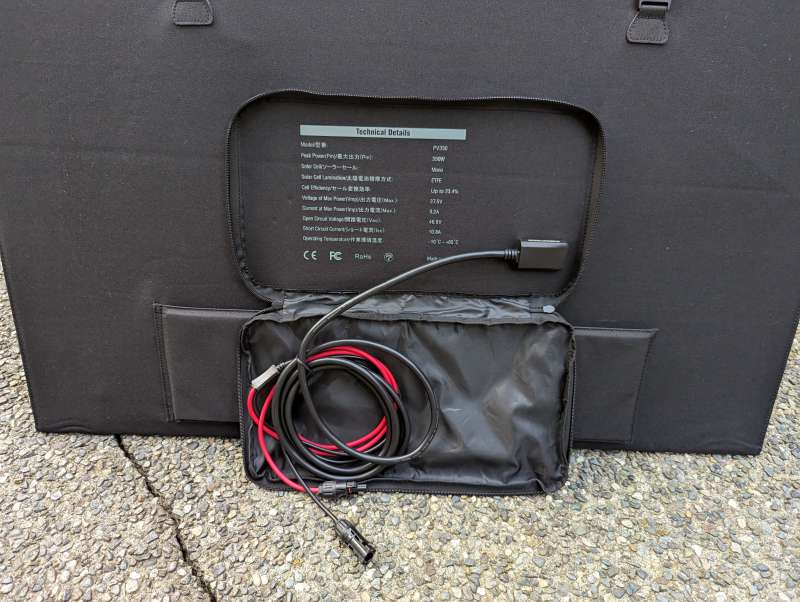

The PV350 cables are hardwired rather than detachable. They store in a zippered pocket on the back of the case, which keeps them tidy during transport.

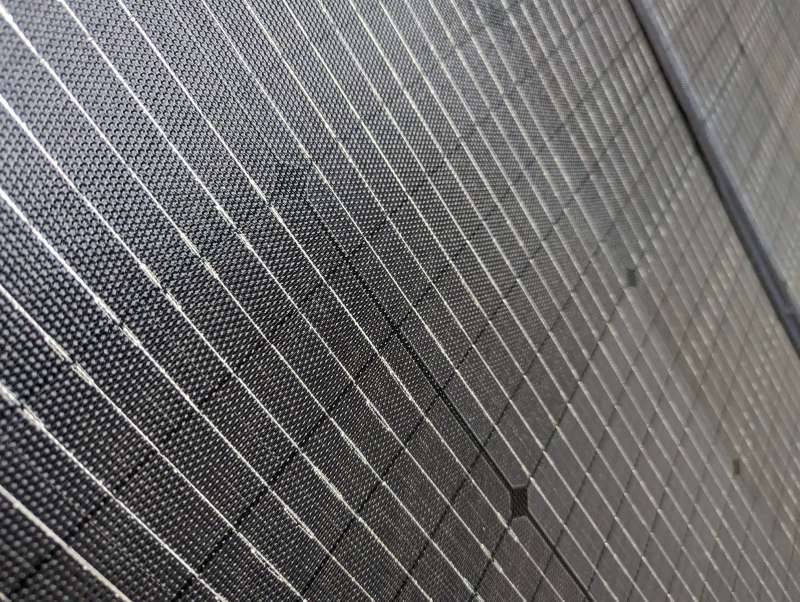

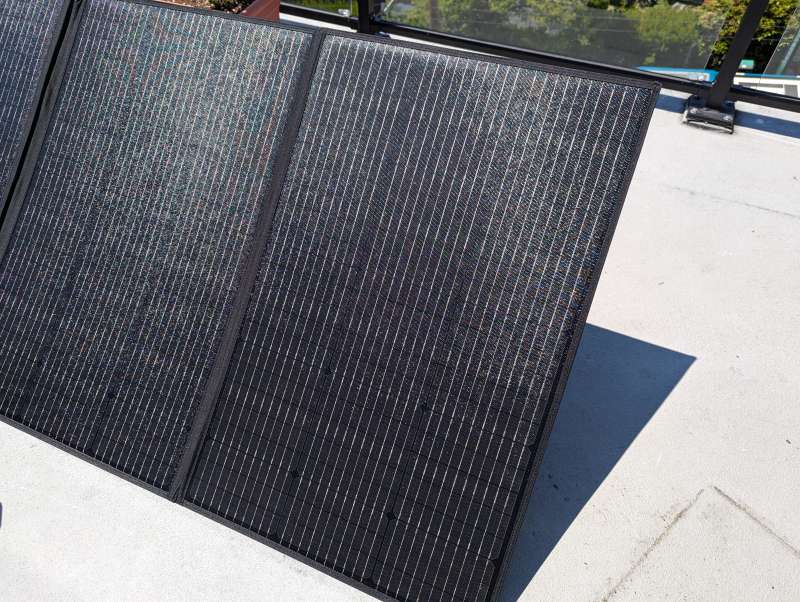

The panel surface uses monocrystalline cells and ETFE lamination. Bluetti claims up to 23.4% charging efficiency, which is part of why the panel can deliver useful input without being permanently mounted.

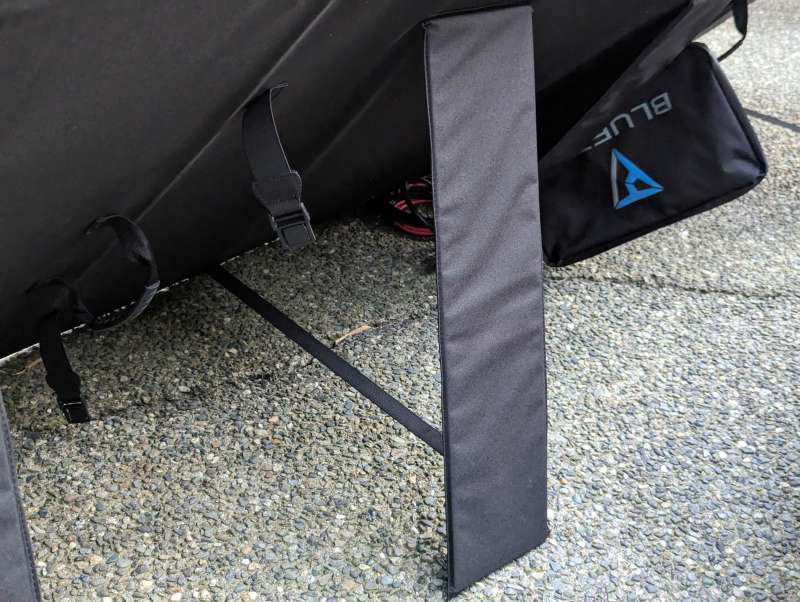

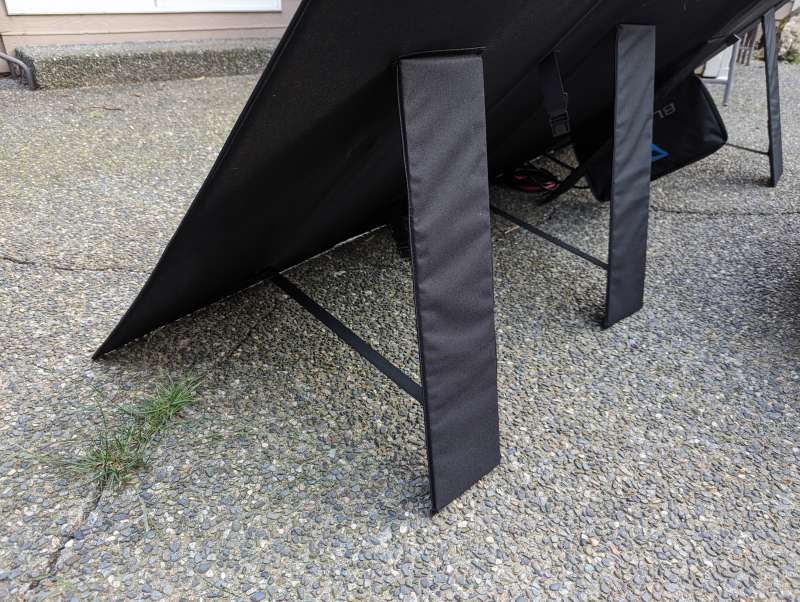

Four rear stands let you angle the PV350 toward the sun. They are held with elastic fabric and work once everything is positioned.
The stands are also my biggest complaint about the panel. When I tried to set one stand at the angle I wanted, the panel often tipped before I could extend the others. I eventually got all four set correctly, but it took more wrestling than I expected.
The MC4 connectors lock firmly to the included Bluetti MC4 cable, and that cable then links into the charging cable that connects to the AC200MAX.
Setup and app control
Getting the most from the PV350 starts with panel placement. It needs bright sun, a good angle, and enough cable reach to keep the power station out of direct heat when possible.
The cable chain looks confusing at first, but each connector only fits where it is supposed to. After a little trial and error, the sequence becomes straightforward.
Once everything is connected, I made sure the plugs were secure and kept the AC200MAX shaded whenever the sun was strong.

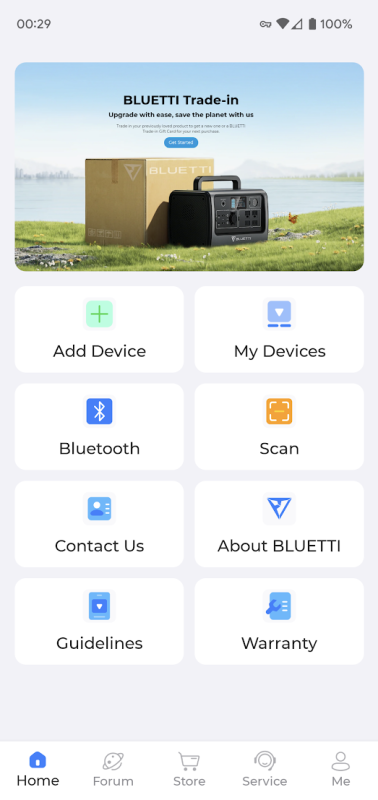

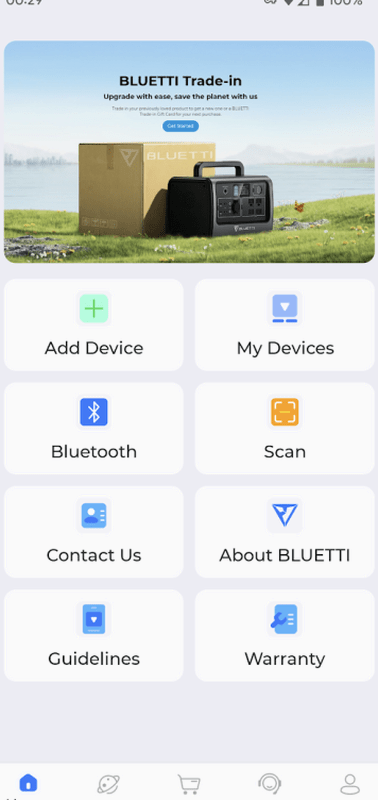

The next step was the Bluetti app. Account creation was simple, and pairing the app with the AC200MAX was painless.
With the cables connected, the app set up, and the AC200MAX powered on, the system was ready for testing.
Using the AC200MAX and PV350 together

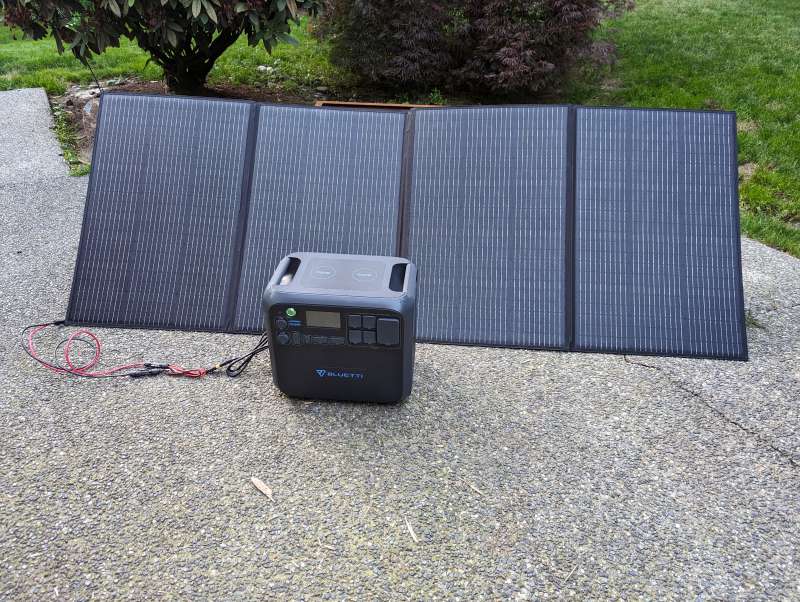

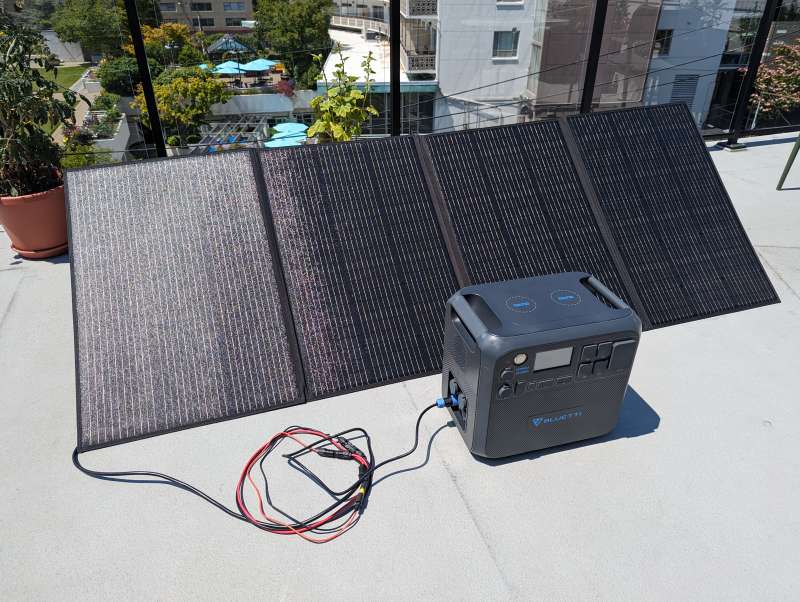

Charging the AC200MAX from the PV350 was easy once the panel was positioned. I had a stretch of unusually sunny Seattle weather, and the panel was able to feed the station with the kind of strong input I hoped to see from a 350W panel.

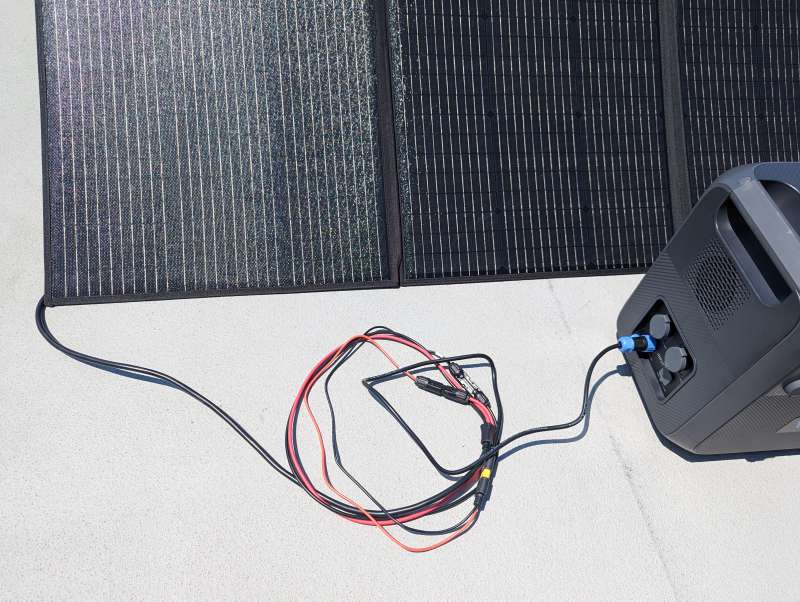

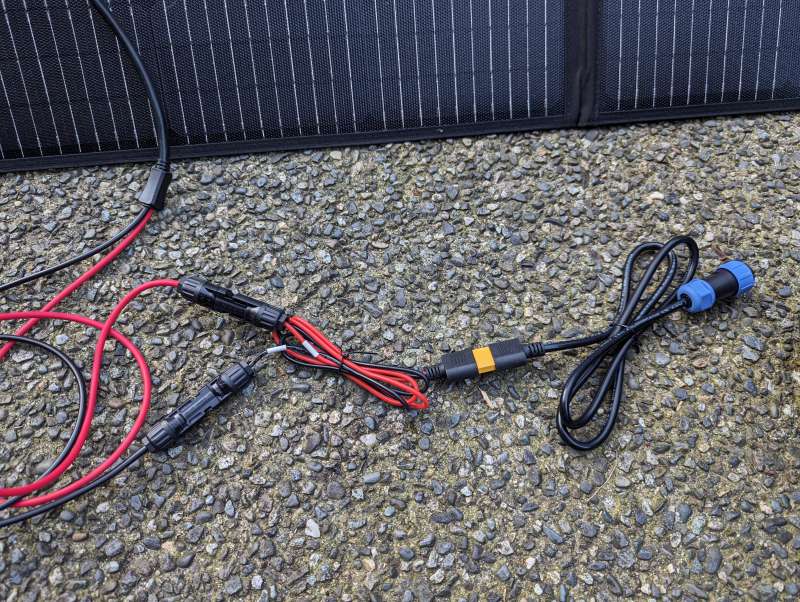

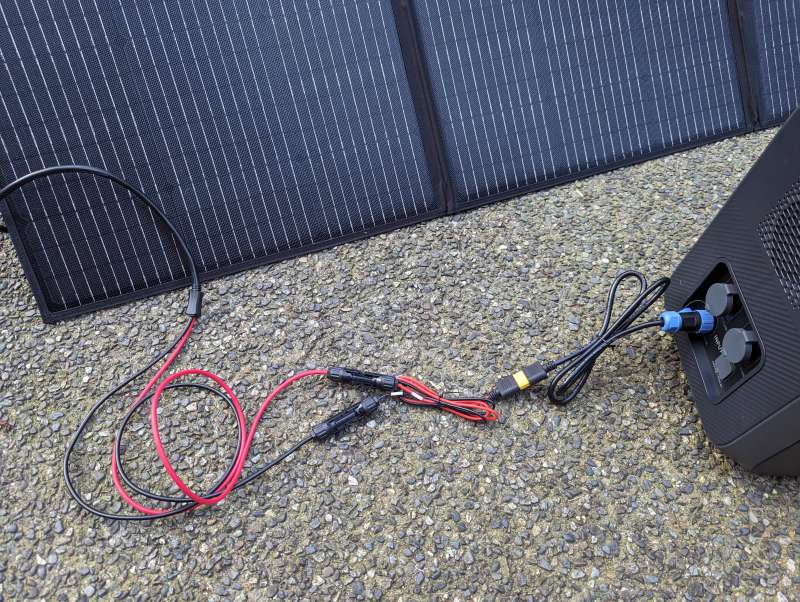

The connection path is PV350 to MC4 cable, MC4 cable to aviation plug cable, then into the AC200MAX. It sounds like a lot, but it worked reliably after setup.

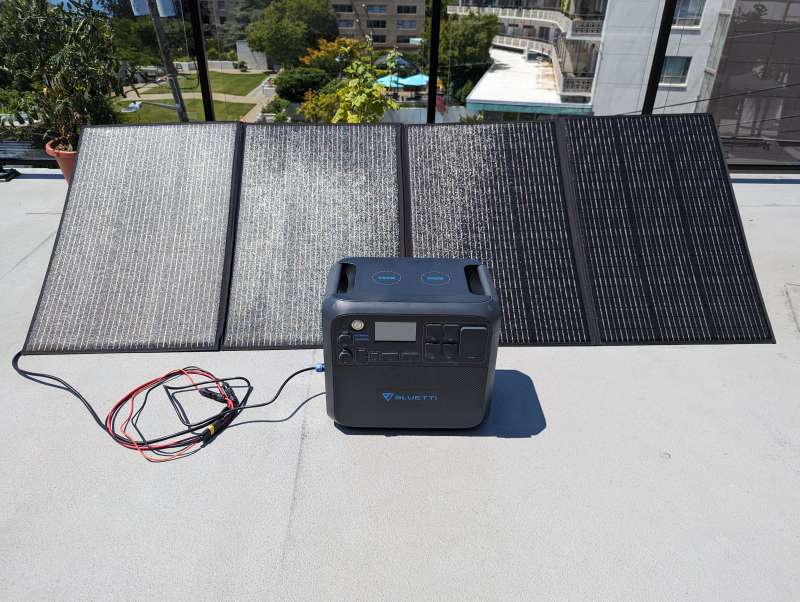

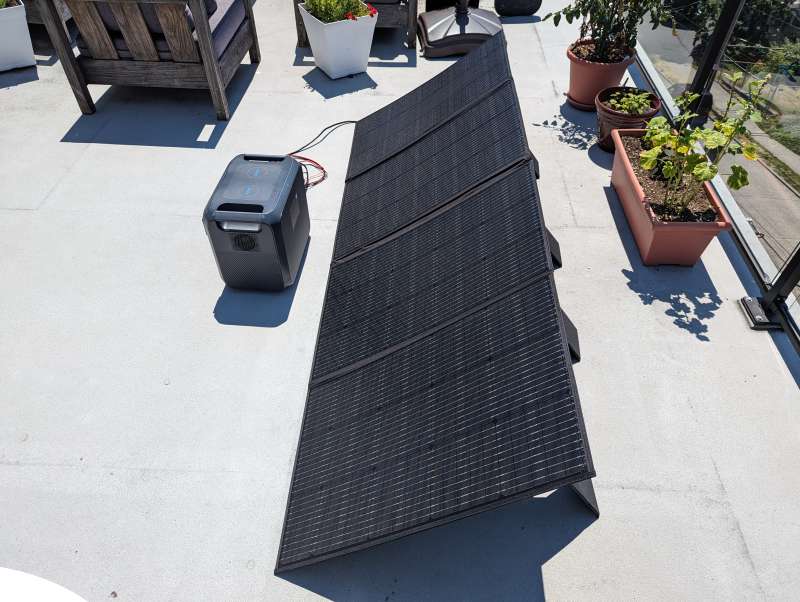

The cable length gave me enough flexibility to keep the power station in shade while the PV350 stayed in full sun.
The PV350’s large surface area made it easy to capture sunlight, especially once I had the angle dialed in.
One of the AC200MAX’s best charging tricks is combining power sources. You are not limited to only solar or only AC. You can use a solar panel and the AC adapter at the same time for faster charging.

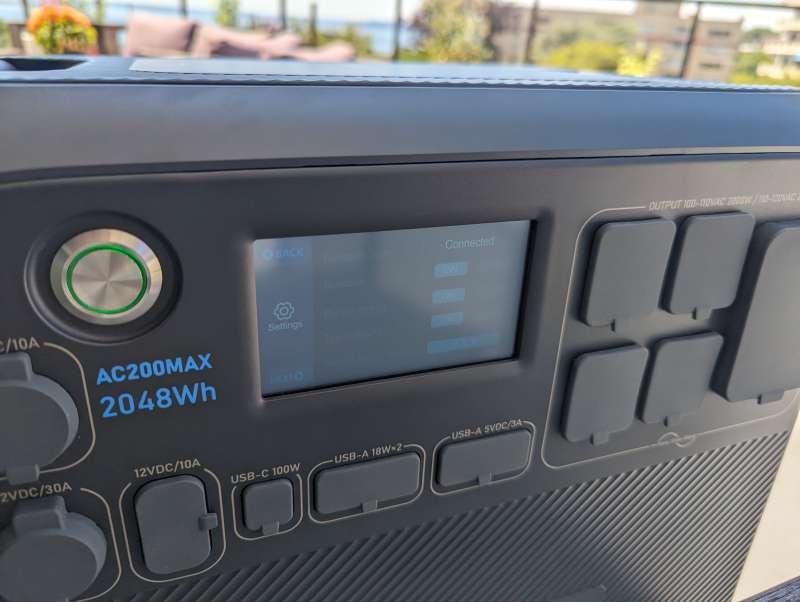

The built in screen can be hard to read in direct sunlight, but the app fills that gap nicely by showing the information you need without standing over the unit.

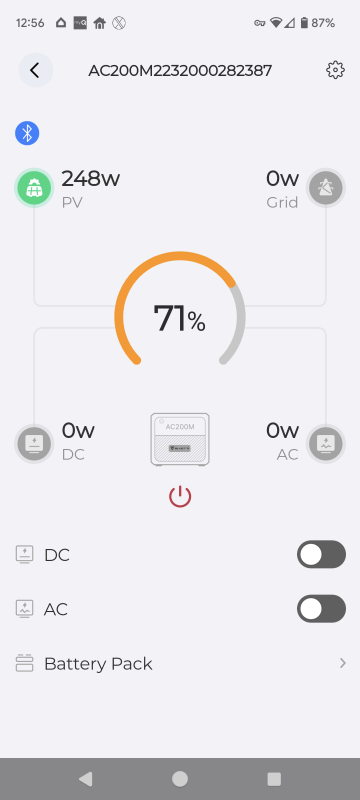

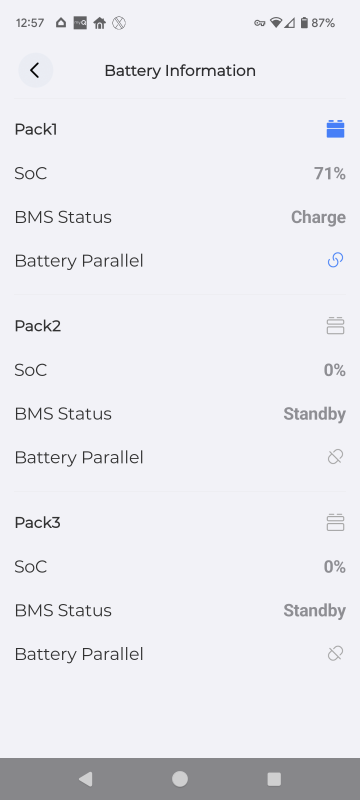

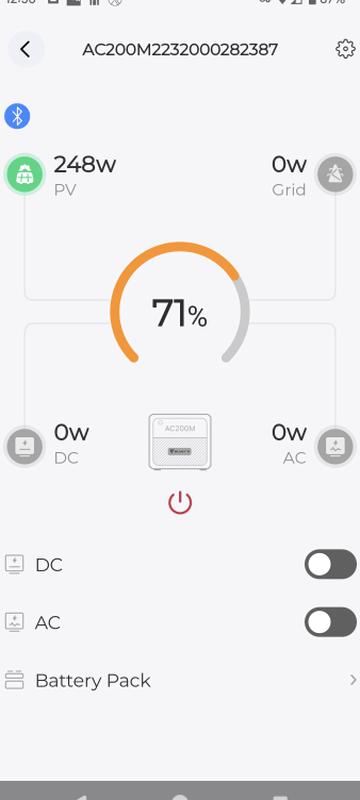

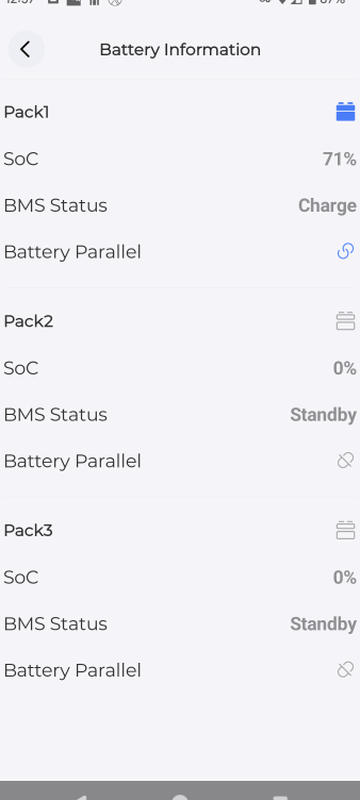

The app is easy to navigate and shows charging, discharging, battery status, and operating details for the AC200MAX.
It also lets you turn different inputs and outputs on or off depending on how the power station is being used.
Fully charged, the AC200MAX powered my portable gadgets for hours, along with my laptop, a fan, and a portable AC unit I was testing at the time. Leaving the PV350 connected while the station ran my gear made the setup feel genuinely self contained. It is the kind of portable power arrangement that can let you avoid wall power completely when the sun cooperates.
What I liked
- Excellent mix of charging options and fast recharge potential
- Expandable capacity up to 8,192Wh with Bluetti battery packs
- Large and useful selection of output ports
- Strong app support for monitoring and control
- Rugged, practical design
What I would change
- The system is expensive
- The AC200MAX may be too heavy for some users to call truly portable
- The PV350 support legs are more awkward than they should be
Final verdict
The Bluetti AC200MAX is the best portable power station I have tested so far. It beats the others I have used on capacity, design, functionality, and versatility, and it becomes even more capable when paired with the PV350 350W Solar Panel or Bluetti expansion batteries. The extra battery packs can take the system from 2,048Wh to 8,192Wh, which is a huge amount of portable capacity. At $1499 for the AC200MAX and $799 for the PV350, the price is high but competitive for this level of power and reliability. My complaints are limited to the AC200MAX’s weight and the PV350’s fussy supports. If you want dependable portable power with lots of outlets, flexible charging, a useful app, and room to grow, the AC200MAX and PV350 are an outstanding combination.
This isn’t the only one I’ve put through its paces. Check The Best Portable Power Stations I’ve Tested for the full lineup.
Price: $1499 for AC200MAX Expandable Power Station, $799 for PV350 350W Solar Panel
Product Link: Bluetti
Source: The sample of this product was provided by Bluetti.
RATING: 5 stars
